Bare Printed Circuit Board Manufacturing


M&M Technology have been providing services to the PCB Industry since 1987. We have both US and overseas suppliers. M and M Technology can supply products to the following segments of the industry: Commercial, Military and Medical. High temperature applications and UL approval.


Products

  • Standard PCB
  • Flex Circuits
  • Rigid - Flex Circuits
  • Multi-layer Boards

Services

  • Two Day Turn Around
  • Gerber File Modification
  • Create Gerber files from PCB drawings or sample PCB

Panel Size

  • 6 x 6 to 18 x 24 inch standard
  • 22 x 30 special order

PCB Specifications

  • ROHS compliant
  • Up to 26 layers
  • Drill size 4 mils
  • Line width 4 mils
  • Line spacing 4 mils
  • Copper 6 oz. Standard 10 oz. special order

Materials

  • FR4 and FR5
  • Polyamide
  • Ceramic
  • Aluminum
  • Gold and Silver flash plating
  • Electrolytic Gold/Nickel Plating

For more information about M&M Technology Bare Printed Board manufacturing capabilities, or other products and services... Contact us

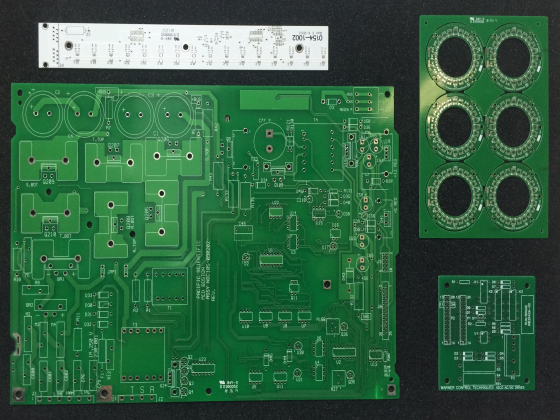

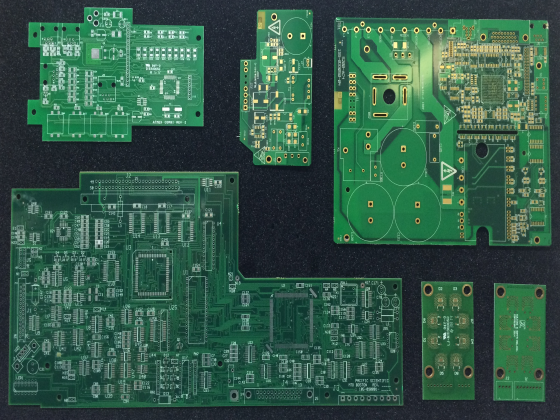

 Bare Boards



At M&M we work with you to satisfy your company needs

We enjoy helping customers with custom prototype designs

We offer static and loaded burn-in testing

In circuit (Genrad), and functional testing

For More information

About our custom electro-mechanical assembly capabilities, or our other products and services, please contact us at +1 704 882 9432 or click the links below
